W24S-16 Hydraulic profile bending machine

Email: info@ntjugao.com

Tel: 008613222111178

Whatsapp: +8613222111178

W24S-16 Hydraulic profile bending machine

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Main structural features

1. Rolls are hardened & made from high quality steel .

2. Drive shafts are hardened and ground with double taper roller bearing support .

3. Machine can be set up in horizontal or vertical working position .

4. Hydraulic lateral angle guide rolls ,Double pinch hydraulic forming rolls .

5. Dual adjustable lateral guides Rolls are driven via 3 separate hydraulic motor Lower rolls hydraulic moveable up and down .

6. Perfectly complete pre-bending,rolled-up,roll calibrate .

7. Three rollers are powered .Working principle: two down rollers as main driving roller,Triple geared drive,displacement liquid-crystal display with accuracy+_0.1mm .

Application

It can process various metal profiles, such as Angle steel, flat steel, round steel and other cross section profiles.

Sample show

Technical parameter

NO.	Name		DATA	UNIT	REMARKS
1	Top-Shaft Diameter		80	mm
2	Bottom-Shafts Diameter		70	mm
3	Rolls Diameters		245	mm
4	Working Speed		6	m/min
5	Main Motor		4	KW
6	Max working pressure of hydraulic system		25	MPa
7	Machine dimension	Length	1500	Mm
		Width	1000	Mm
		Height	1400	Mm
8	Weight		2000	Kg

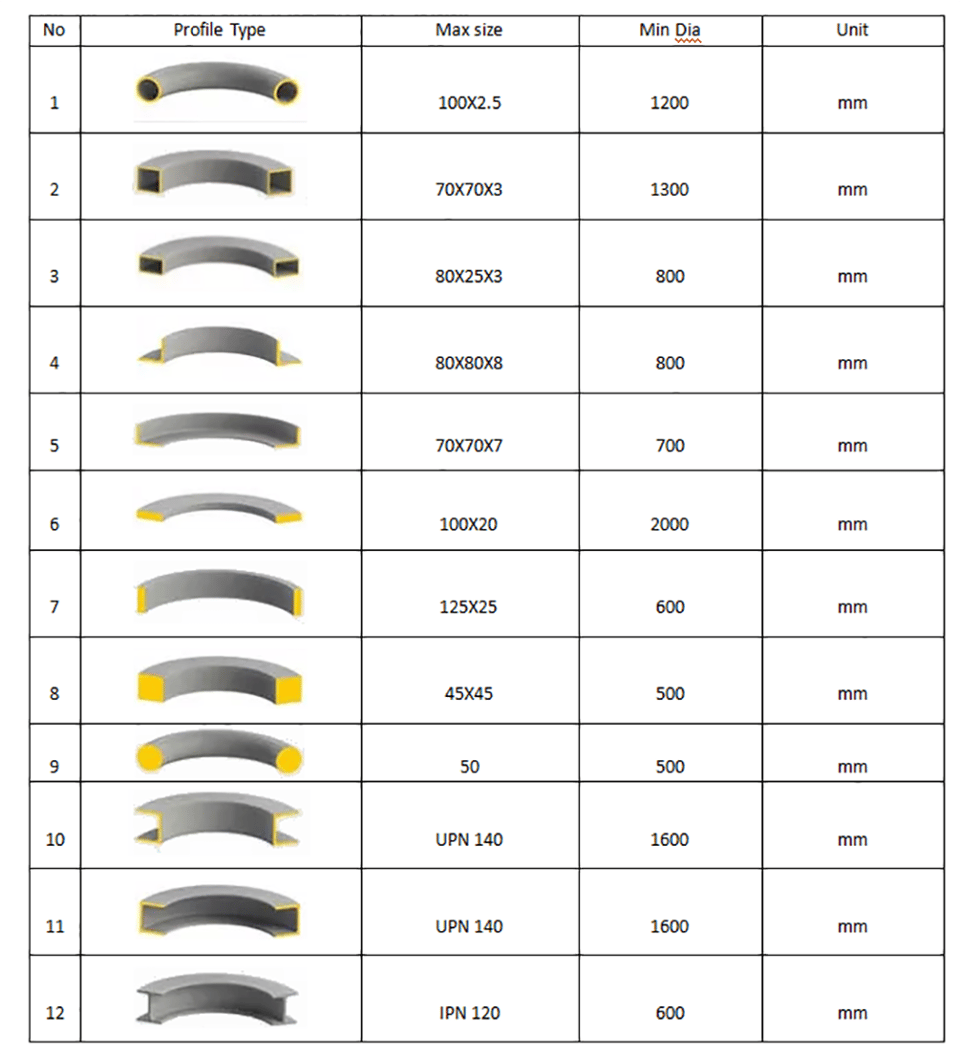

Capacity

Accessories brand list

No.	Name	Model/Manufacturer	Other	Configuration
1	CNC Controller	þ Siemens		Standard
2	PLC	Omron Japan
3	Electrics	Germany Schneider electric	Travel switch & Limit switch
4	Hydraulic Motor	Siemens motor
5	Main motor	Siemens motor
6	Pedal Switch	South Korea KACON
7	Hydraulic system	Bosch Rexroth Germany
8	Oil pump	SUNNY USA
9	Bearing	WFD China
10	Sealing ring	PARKER-America
11	Oil tube connector	Casing connector
12	Work Roller	42CrMo Alloy steel
13	Transducer	OMRON Japan
14	Molds of Round pipe	Produced by JUGAO		Optional
15	Warning of high oil temperature	þYes
16	High oil pressure protection	þYes
17	Motor overload protection	þYes
18	Electricity leakage protection	þYes
19	Safety Relay	þYes
20	Monitoring and Redundant valves	þYes
21	Safety standard	þCE ¨CSA þNR-12 ¨OSHA

SPARE PARTS AND SPECIAL TOOLS

Accessory
1	GB801-2011	Bolt M16X500	Piece	4
2	GB7160-2016	Nuts M16	Piece	4
3	GB610-2014	Electrical box key	Piece	1
4	GB568-2018	Foot switch	Piece	1
Spare parts
5	GB689-2018	O type seal ring	Piece	17
6	GB638-2018	Combination seal ring	Piece	16
