DAC-310 Shear Control Range Single-Axis Programmable Shear Control Solution

CNC shearing machine system

The shearing machine control system is composed of a control part, a driving part and a monitoring part.

D Series CNC Controllers For Shearing Machines

DAC-310 Shear control range single-axis programmable shear control solution

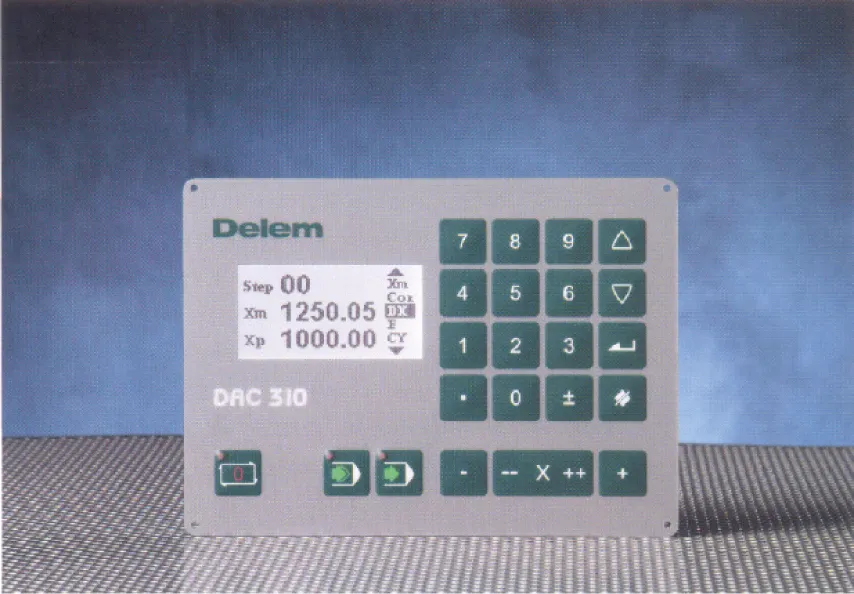

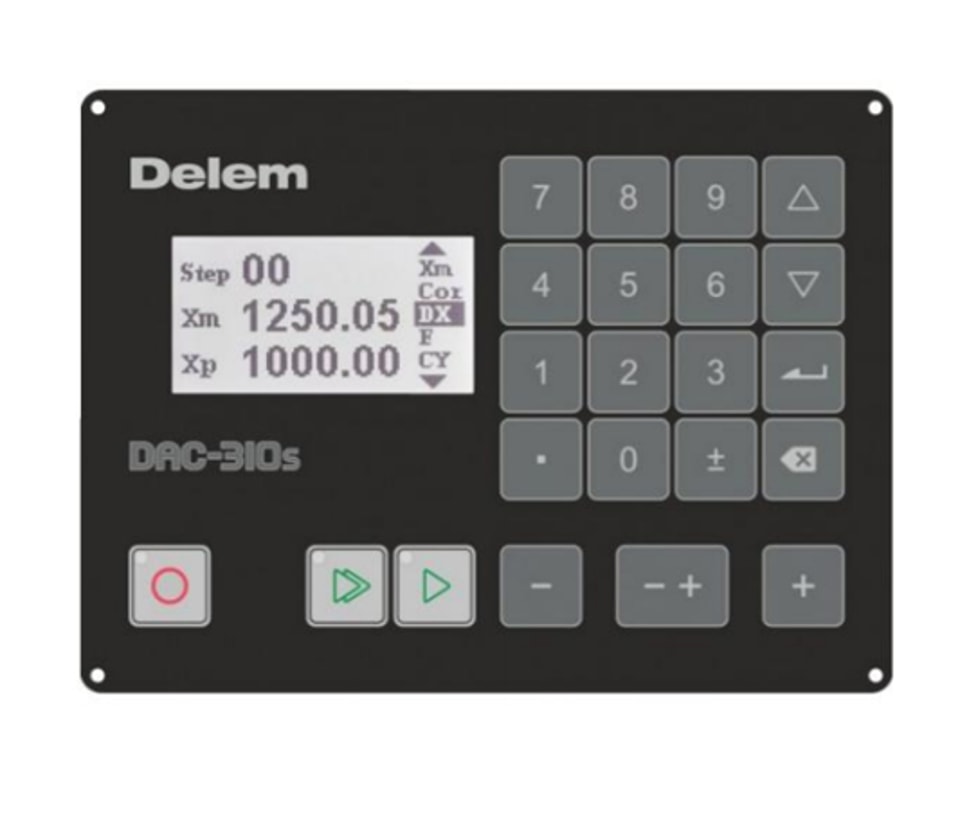

The DAC-310 shear controller provides a complete and compact shear control application. Including backgauge control, gap control and stroke length limitation this state of the art electronics based unit makes a versatile solution.

Whatever kind of positioning is selected, depending on the application you can select either two-side positioning as well as single-side positioning with spindle fault elimination. Referencing can either be done automatically or the DAC-310 will always remember the last position of the system after powering off.
The backgauge can be moved manually by selecting pushbuttons in 2 different speeds.
With its bright LCD display, the control offers a clear, fast and simple programming facility. The actual and programmed position information is visualized simultaneously; the stock counter can also be displayed at the same time. On every step the control offers chaining, retract functionality as well as repetitive strokes.

Features
■ Bright LCD 128 x 64 display
■ Backgauge control
■ Gap control
■ Stroke length limitation
■ Actual and Programmed position visualization.
■ Stock counter
■ Programmable up to 100 steps
■ Panel-based housing
■ Servo control / unipolar / AC two- speed control
