Laser cutting equipment is systematically classified into three primary categories based on operational capacity and physical dimensions. This classification framework enables precise matching of machine capabilities with specific industrial requirements across various production scales.
1. Compact Precision Laser Systems
Technical Specifications:
l Work Envelope: 300×200mm to 600×450mm (12"×8" to 24"×18")
l Laser Power: 30W-100W (CO₂/Fiber)
l Positioning Accuracy: ±0.01mm
l Footprint: <1.5m² with integrated fume extraction
Advanced Features:
l High-resolution galvanometer scanning (up to 5000dpi)
l Air-cooled laser sources for energy efficiency
l Touchscreen HMI with proprietary design software
l Automatic focus adjustment (±0.1mm)
Target Industries & Applications:
Industry | Typical Applications | Technical Advantages |
Jewelry Manufacturing | Micro-engraving, precious metal cutting | 20μm spot size for intricate details |
Electronics | PCB depaneling, micro-component fabrication | Vibration-free granite base |
Medical Device | Surgical instrument marking | Class 1 cleanroom compatibility |
Education | Engineering prototyping | Safety interlocks and reduced power modes |

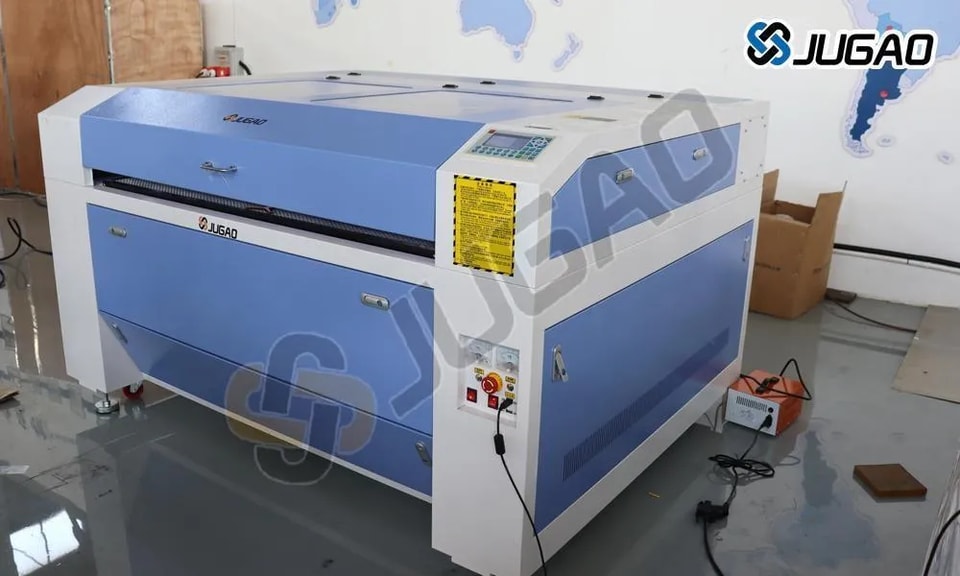

2. Mid-Range Production Laser Cutters
Technical Specifications:
l Work Envelope: 600×450mm to 1200×900mm (24"×18" to 48"×36")
l Laser Power: 100W-300W (Fiber/Disc)
l Cutting Speed: Up to 20m/min (1mm mild steel)
l Footprint: 3-5m² with material handling system
Advanced Features:
l Dual-laser hybrid configuration options
l Automatic nozzle changing system
l Real-time beam diagnostics
l Predictive maintenance interface
Industrial Applications:
l Automotive Tier 2 Suppliers:
Body panel prototyping
Interior component fabrication
EV battery enclosure production
l Point-of-Purchase Displays:
Multi-layer acrylic constructions
Metal-wood composite structures
High-speed vector cutting
l Textile Advanced Manufacturing:
Technical fabric processing
Composite material layup
Automated pattern nesting

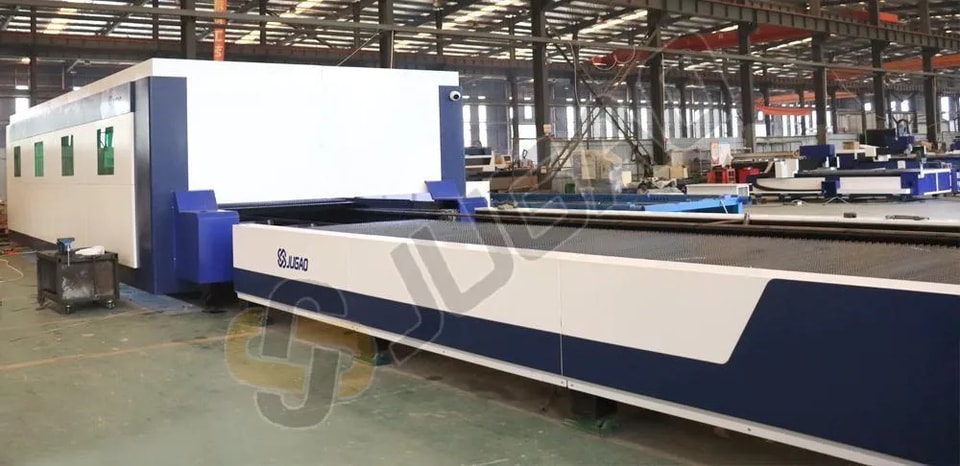

3. Heavy-Duty Industrial Laser Platforms
Technical Specifications:
l Work Envelope: 1200×900mm to 2500×1500mm+ (48"×36" to 100"×60"+)
l Laser Power: 300W-15kW (Fiber/CO₂)
l Material Capacity: Up to 50mm mild steel
l Footprint: 8-15m² with peripheral systems
Advanced Features:
l Gantry-style linear drive systems (0.05mm/m accuracy)
l Multi-pallet loading automation
l Adaptive cutting head technology
l Integrated quality inspection modules

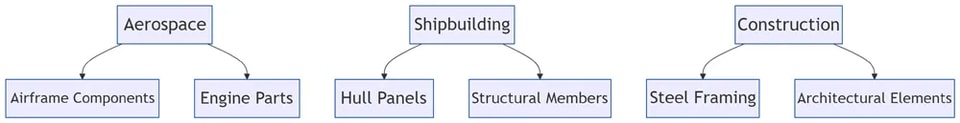

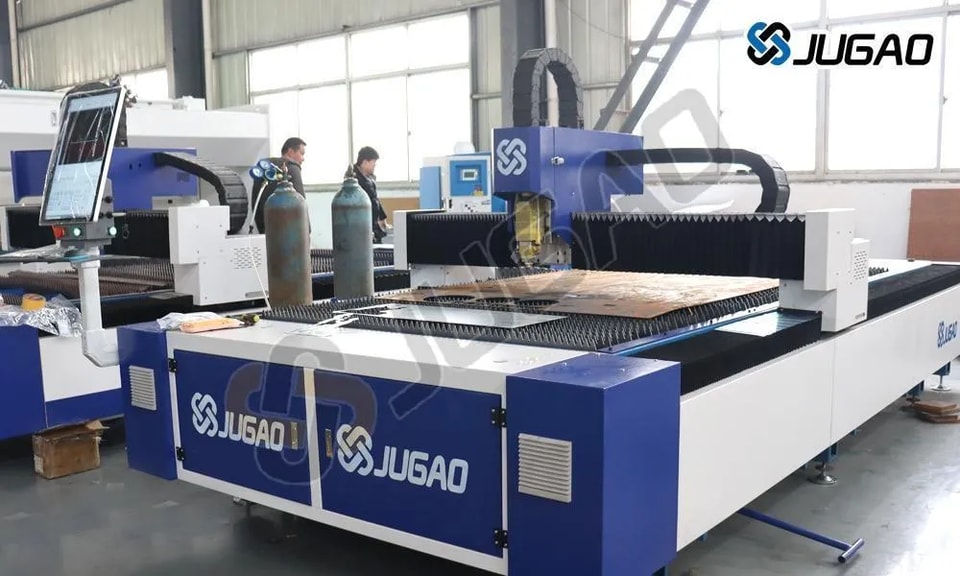

Heavy Industry Applications:
Technical Comparison Matrix:
Parameter | Compact | Mid-Range | Industrial |
Max Sheet Thickness* | 3mm | 10mm | 50mm |
Typical Tolerance | 卤0.02mm | 卤0.05mm | 卤0.1mm |
Power Consumption | 2-5kVA | 10-20kVA | 30-100kVA |
Automation Level | Manual | Semi-auto | Full-auto |
Cycle Time (1m2) | 2-4hr | 30-60min | 5-15min |
*For mild steel with O₂ assist
Selection Methodology
Four-Step Decision Framework:
1. Material Profile Analysis
Conduct metallurgical testing
Measure thermal conductivity
Determine reflectivity index
2. Production Volume Assessment
Calculate annual throughput requirements
Evaluate shift patterns
Project growth scenarios
3. Facility Audit
Measure available floor space
Verify power infrastructure
Assess material flow paths
4. Total Cost of Ownership Modeling
Capital equipment costs
Consumables expenditure
Maintenance labor hours
Energy consumption
Emerging Technology Integration
l Smart Manufacturing Features:
IoT-enabled performance monitoring
Cloud-based job scheduling
Augmented reality maintenance guides
Machine learning process optimization
l Sustainable Operations:
Energy recovery systems
Closed-loop water cooling
Particulate filtration >99.97%
Noise reduction enclosures
This classification system enables manufacturers to:
l Reduce equipment selection time by 40-60%
l Optimize capital expenditure ROI
l Minimize production bottlenecks
l Future-proof technology investments
For optimal results, consult with laser application engineers to conduct a comprehensive production analysis before finalizing equipment specifications.
