Techniques for Rolling Conical Shapes

Rolling conical shapes typically refers to the tapering process of metal sheets. Here are some relevant techniques:

I. Material Preparation Stage

Accurate Measurement and Calculation

- Before rolling a conical workpiece, it is essential to accurately measure and calculate all required parameters. First, determine the large-end diameter, small-end diameter, and cone height. These data directly affect the subsequent sheet metal cutting dimensions and the rolling process.

- For example, for a conical cylinder of a specific size, the radius and central angle of the unfolded sector can be calculated using relevant mathematical formulas for cones. Accurate calculations reduce material waste and errors in subsequent processing.

- The formulas are: Sector radius R = (Large-end radius² + Cone height²) square root, Central angle α = 360° × (Large-end diameter - Small-end diameter) ÷ (Large-end diameter × π).

Appropriate Sheet Metal Selection

- Select the appropriate sheet metal material and thickness based on factors such as the working environment, strength requirements, and cost of the conical workpiece. Different sheet metal materials have different mechanical properties and processing characteristics. - For example, if the conical workpiece is intended to withstand significant pressure or impact, high-strength steel may be necessary; if weight is a strict requirement, lightweight materials such as aluminum alloys can be considered. Simultaneously, the thickness of the sheet metal should be determined based on the required strength and rigidity; excessive thickness increases cost and processing difficulty, while insufficient thickness may fail to meet usage requirements.

- Furthermore, attention must be paid to the surface quality of the sheet metal, avoiding scratches, dents, and other defects that could affect the appearance and quality of the rolled conical workpiece.

II. Rolling Process Stage

Die and Equipment Adjustment

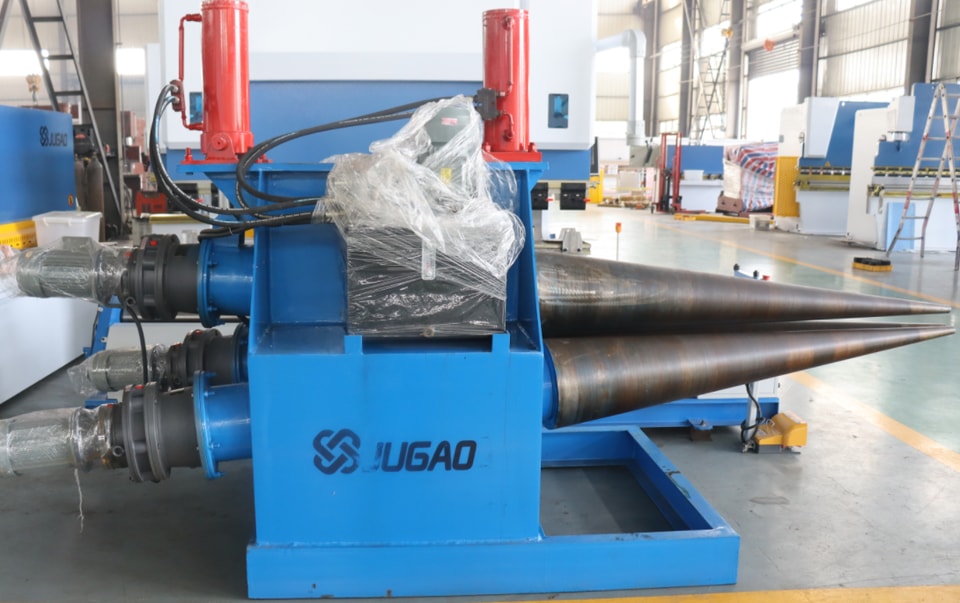

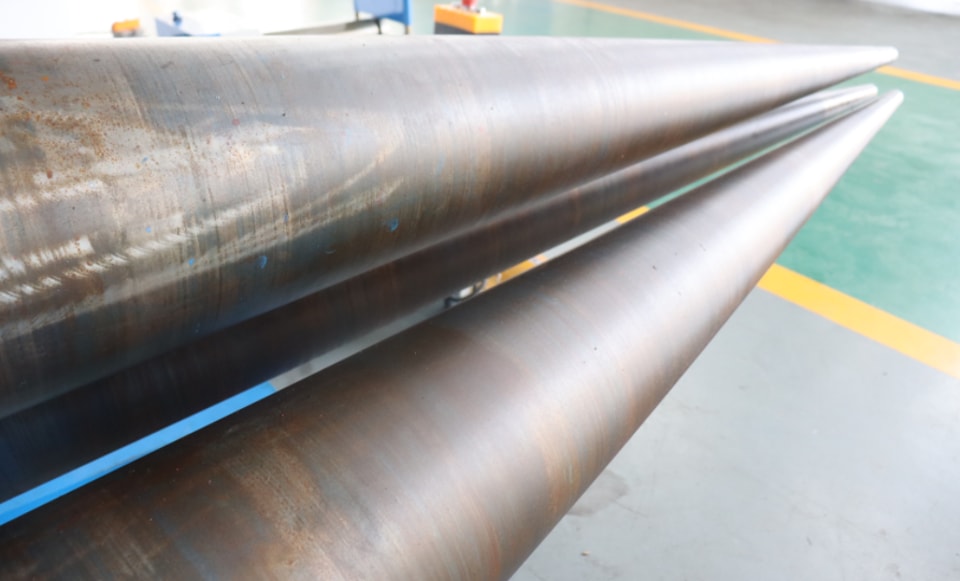

- Select a suitable plate rolling machine and corresponding dies. The roller diameter, roller spacing, and roller surface condition of the plate rolling machine all affect the rolling effect. For conical rolling, a plate rolling machine with conical dies or adjustable roller spacing may be required.

- Before starting rolling, the plate rolling machine must be carefully adjusted to ensure that the axes of all rollers are parallel, operate smoothly, and that the roller pressure is uniform. Simultaneously, adjust the rolling speed and pressure of the plate rolling machine according to the size of the conical workpiece and the thickness of the sheet metal.

- For example, for thicker sheets, the rolling speed should be appropriately reduced to prevent cracking or deformation due to uneven stress during rolling; while for thinner sheets, less pressure is needed to avoid excessive deformation.

Progressive Rolling Method

- When rolling a cone shape, a progressive rolling method should be used. First, place one end of the sheet into the rolling machine and gradually roll it into a small arc. Then, gradually advance the sheet, increasing the arc until a complete cone shape is formed.

- During the rolling process, carefully observe the deformation of the sheet and adjust the pressure and rolling speed of the rolling machine as needed. If problems such as twisting, wrinkling, or excessive local deformation are found, rolling should be stopped immediately, the cause analyzed, and adjustments made.

- For example, when wrinkling occurs, it may be due to excessive rolling speed or pressure. The rolling speed and pressure can be appropriately reduced, or auxiliary tools can be used to adjust the wrinkled areas.

Controlling Rolling Accuracy

- To ensure the dimensional and shape accuracy of the conical workpiece, real-time measurement and monitoring are necessary during the rolling process. Measuring tools (such as calipers and angle gauges) can be used to measure the diameter and angles of the cone to ensure they meet design requirements.

- For some conical workpieces with high precision requirements, multiple measurements and adjustments may be necessary during rolling. For example, if the tolerance requirements for the large and small end diameters of the cone are small, rolling can be paused after a certain point to measure the diameter, make fine adjustments based on the measurement results, and then continue rolling.

- In addition, attention must be paid to the straightness of the generatrix and the flatness of the surface of the cone. This can be checked visually and using tools such as rulers; any deviations should be corrected promptly.

III. Subsequent Processing Stage

Welding and Splicing Processing

- If the conical workpiece is composed of multiple sheet metal pieces, proper welding processing is required. Before welding, ensure that the splicing parts of the sheet metal are aligned and the weld gaps are uniform.

- Select appropriate welding methods and materials, and determine welding parameters such as welding current, voltage, and welding speed based on the material and thickness of the plate. During welding, pay attention to controlling welding deformation and adopt appropriate welding sequences and processes, such as segmented welding and symmetrical welding.

- For example, for thicker plates, preheating can be performed to reduce welding stress and deformation. After welding, the weld should be ground and inspected to ensure the weld quality meets requirements.

Shaping and Correction

- After rolling, the conical workpiece may have some minor deformation or dimensional deviations, requiring shaping and correction. Tools such as presses and jacks can be used to shape the conical workpiece locally or overall.

- For diameter deviations, appropriate pressure can be applied to areas with larger or smaller diameters for adjustment; for angular deviations, heating can be used for correction, but care must be taken to control the heating temperature and time to avoid adverse effects on material properties.

- In addition, templates can be used to check the shape of the conical workpiece to ensure it conforms to design requirements. During the shaping and correction process, care must be taken to the force and method of operation to avoid causing new damage or deformation.
