Laser Cutting Equipment Technical Solutions JUGAO 3015G IPG1000W
2026-10-09

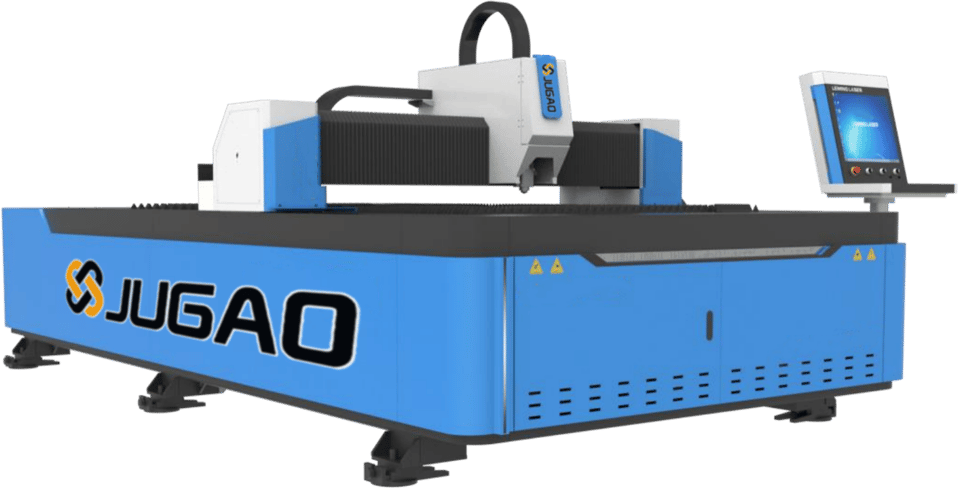

I. Introduction of JUGAO3015G
1. Introduction
JUGAO3015G fiber laser cutter reaches the top level in China, which is customers’ best choice in metal industry. The bed is welded by precise welding process after annealing and aging treatment, and the beam is airborne aluminium castings. For the more, the running speed of the machine can reach 80 m/min.
Technical Parameters
Model | JUGAO3015G |
Working size | 3000mm*1500mm |
X-axis travel | 3000mm |
Y -axis travel | 1500mm |
Z -axis travel | 120mm |
Laser power | 1000w |
X/Y Axis positioning accuracy | ±0.05mm/m |
X/Y Axis repeated positioning | ±0.02mm |
Maximum velocity of movement | 80m/min |
Machine weight | 2200KG |
Outline size | 4600mm*2460mm*1360mm |
2. Characteristics

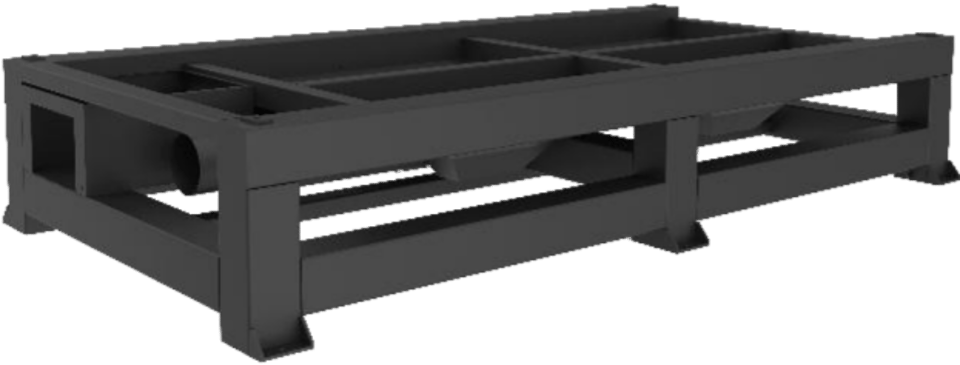

Pipe Welding Bed
High temperature annealing to reduce internal stress and deformation
Structural optimization, the perfect
integration of worktable and bed, knife directly mounted on the bed, integrated bed, avoid shaking

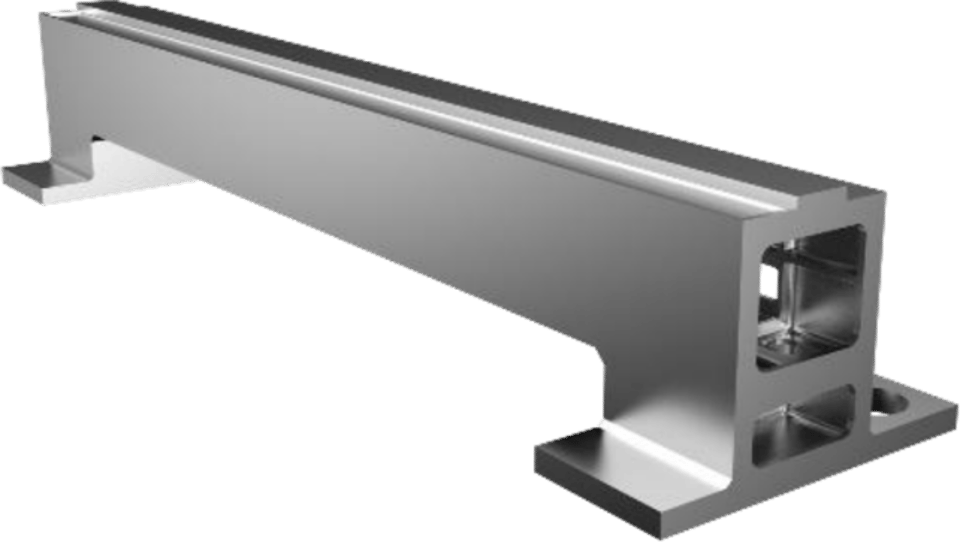

Stable Beam
Integral die-casting beam, high
precision, not easy to deform, long life
The appearance of laser head cover is beautiful, which is helpful for observing red light and
cooling, cleaning dust, avoiding long-term high temperature and damaging internal devices.

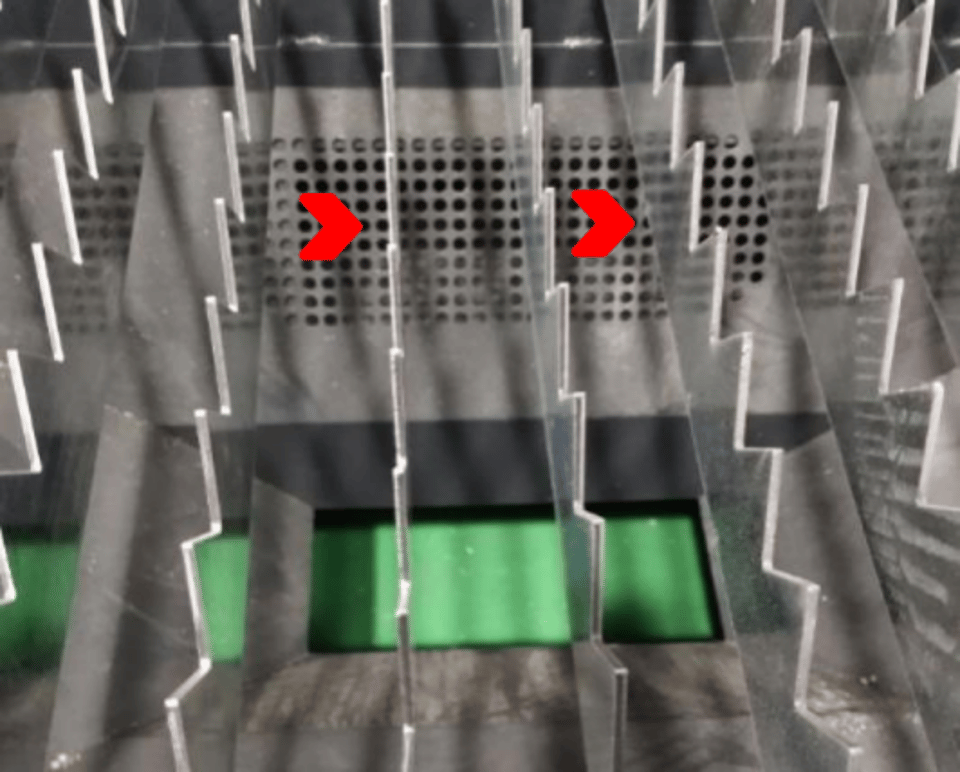

Exhaust Outlet
Push-pull partition smoke, combined
with upper and lower exhaust

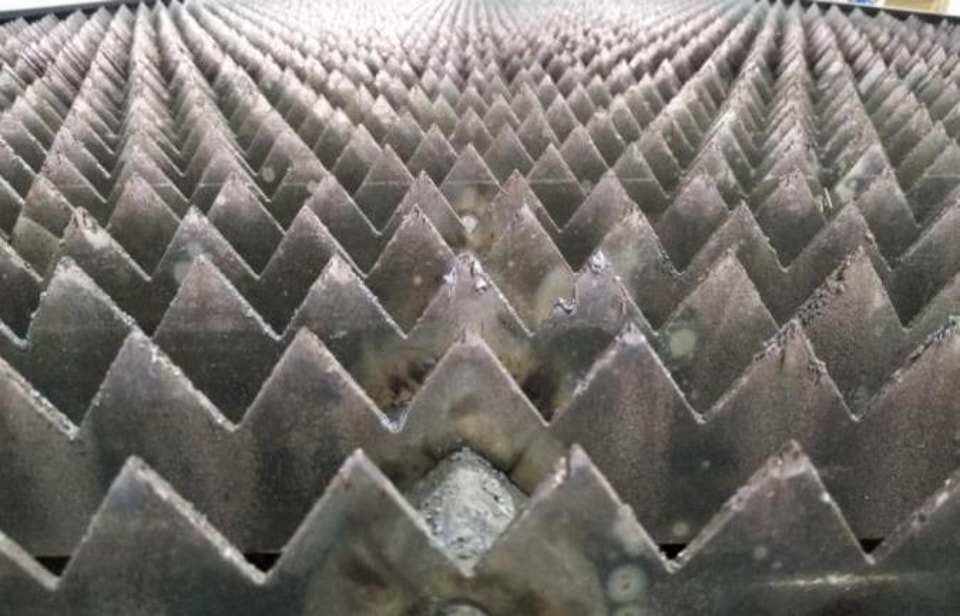

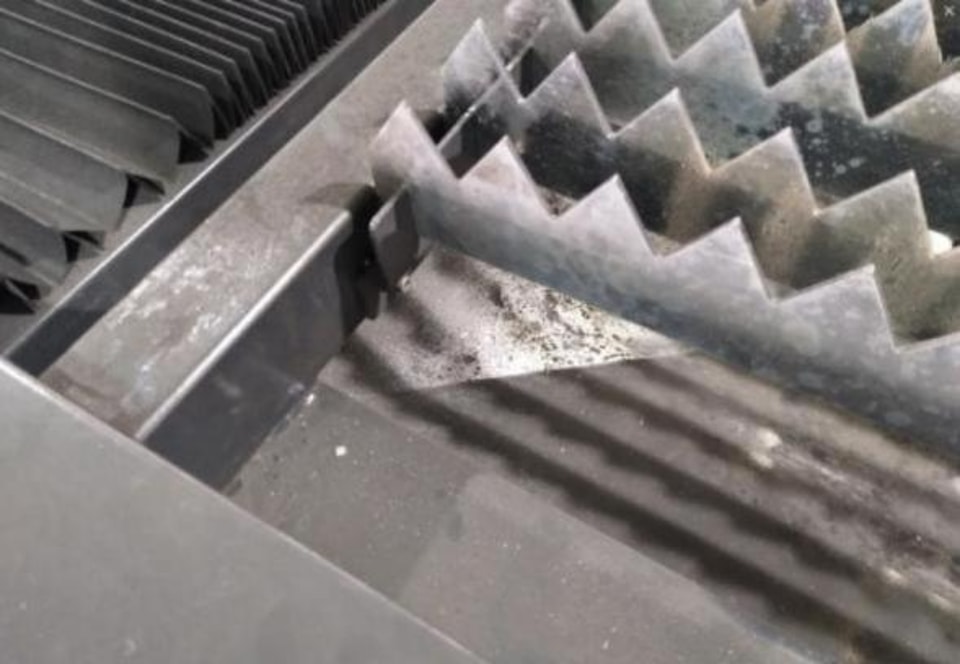

Installation of cutter blade dislocation insertion, firm installation, not easy to loosen and fall off
Application & Capability

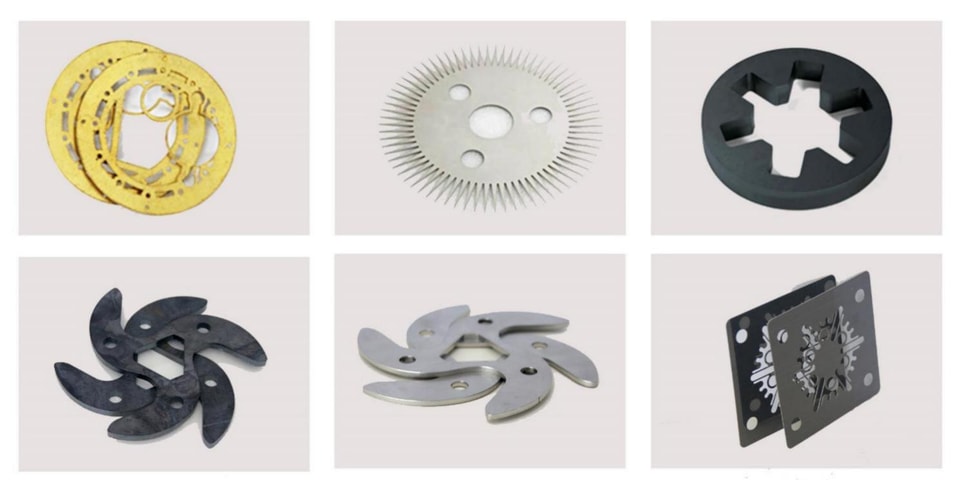

1.Cutting materials: carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized steel, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy;
2.Cutting range: 0.5-12mm carbon steel, 0.5-5mm stainless steel, 0.5-3mm aluminum alloy, 0.5-3mm brass;
3.Applied industries: rail transit, automobile, machinery, electrical manufacturing, elevator
manufacturing, household appliances, kitchen and sanitary ware, advertising, and other machinery manufacturing and processing industries.
Cutting Parameters
Material | Thickness（MM） | Cutting speed（m/min） | Air |
Stainless steel | 1 | 18-20 | N2 |
2 | 6.0-8.0 | N2 | |
3 | 2.5-3.2 | N2 | |
4 | 1.5-2.0 | N2 | |
5 | 0.8-1.0 | N2 | |
Carbon steel | 1 | 15-18 | O2 |
2 | 5.0-7.0 | O2 | |
3 | 3.5-4.0 | O2 | |
4 | 2.0-3.5 | O2 | |
5 | 1.8-2.5 | O2 | |
6 | 1.5-2.2 | O2 | |
8 | 1.0-1.5 | O2 | |
10 | 0.8-1.0 | O2 | |
12 | 0.6-0.8 | O2 | |
Brass | 1 | 10.0-12.0 | N2 |
2 | 4.5-5.0 | N2 | |
3 | 1.0-1.2 | N2 | |
Aluminum | 1 | 13-17 | N2 |
2 | 4.8-5.2 | N2 | |
3 | 1.2-1.8 | N2 |
Configuration
Configuration list | |
Model | JUGAO3015G |
Laser device | IPG1000W |
Laser head | Standard Configuration |
Controlling system | CypCut |
Machinery | LAPPING/SENFENG LMN/EREFAT |
Electromechanical | SIEMENS |
Cutting bed | LM3015G |
Water cooling | Specialized |
Dust exhausting fan | Specialized |
Document | Operating |
Cost Analysis
Project | One：Air compressor | Two：Oxygen | Three：Nitrogen | |
Electrical consumption | Laser | 4KW | 4KW | 4KW |
Water cooling | 2.6KW | 2.6KW | 2.6KW | |
Air compressor | 11KW | |||
Bed machinery | 3KW | 3KW | 3KW | |
Dust exhausting fan | 1.5KW | 1.5KW | 1.5KW | |
Easy damage | 0.07$/H | 0.07$/H | 0.07$/H | |
Air consumption | 0 | 2.17$/H | 8.7$/H | |
Power | 22.1KVA | 11.1KVA | 11.1KVA | |
Total consumption （60% cutting speed ） | 13.3KW/H | 6.7KW/H | 6.7KW/H | |
Total cost （0.14$/kwh） | 2$ | 3.22$ | 9.74$ | |
Ⅱ . Feng Cloud

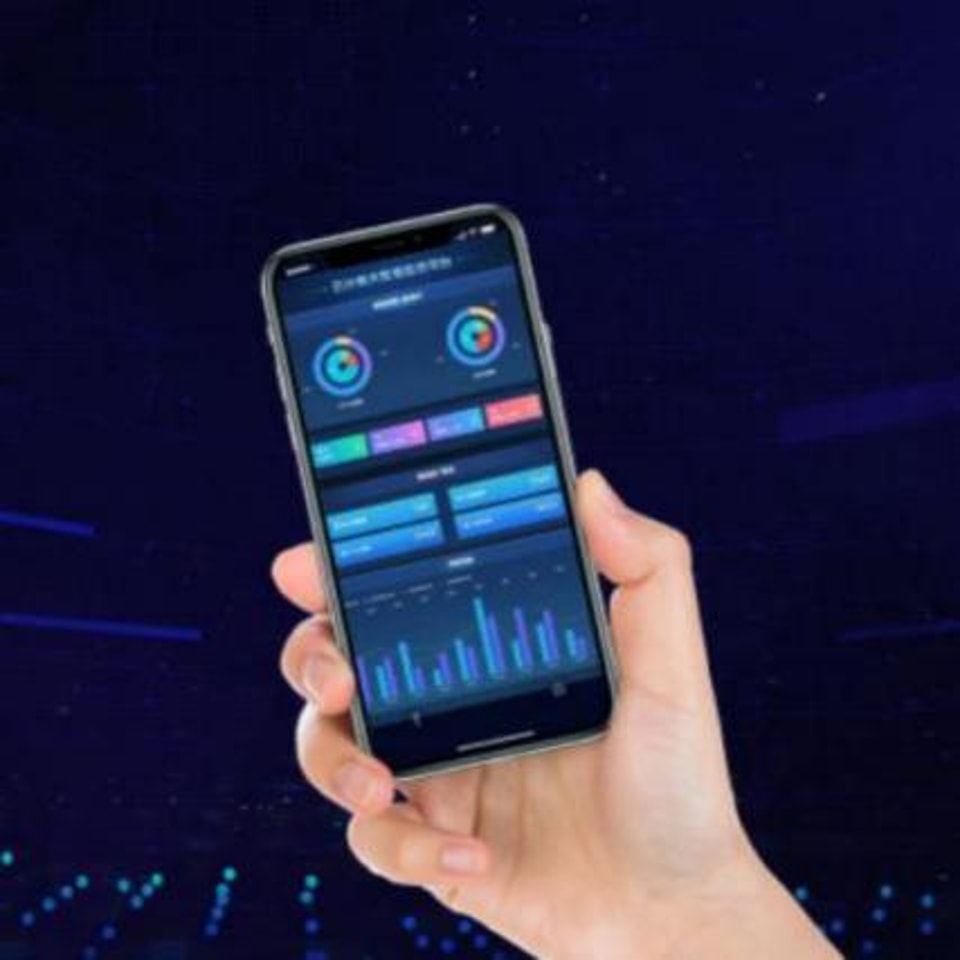

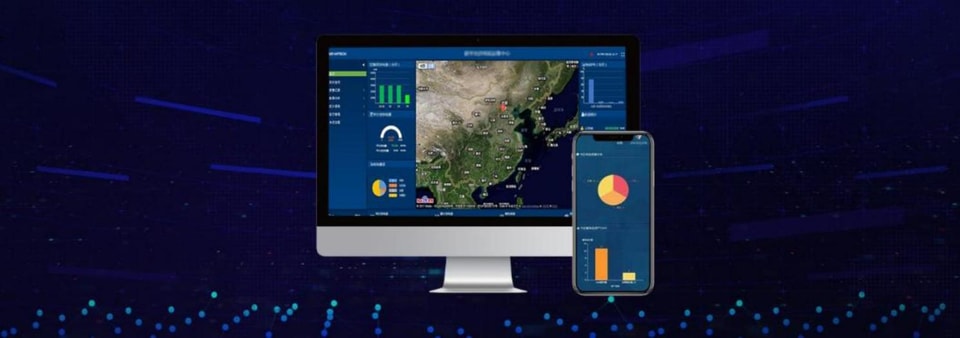

Client users display dynamic graphics of real-time data through browser, allowing to develop and maintain remote engineering in client if they have sufficient privileges. Customers use mobile
phones, PAD and other devices, real-time display of monitoring interface and text mode to change data values, confirm alerts and so on.
(1) The system has the function of "expert system" to realize product positioning, track query, remote fault diagnosis and equipment fault record query. Data is transmitted to client, other monitoring points and server through Internet/5G network.
(2) The Feng Cloud intelligently collects equipment status and fault information for analysis,
calculates production cost and maintenance cost according to a certain algorithm, and obtains the high quality cost performance scheme of product design, which saves manufacturing cost for the enterprise.
(3) The Feng Cloud has powerful functions, such as remote diagnosis and maintenance, redundancy, real-time historical data recording, scheduling, formulation, video and audio functions. It has rich
driving types and scripting functions, sets many standardized interfaces, and it can efficiently connects with the MES system of customer factories.
(4) With the advent of 5G era, the Feng Cloud will combine laser equipment and artificial
intelligence with 5G technology, and be widely used in cloud computing, big data and edge
computing. It will make advanced technology and complex laser equipment more and more present, intellectualized, easy to use and popular, and provide customers with faster and more convenient
global remote diagnosis services.
