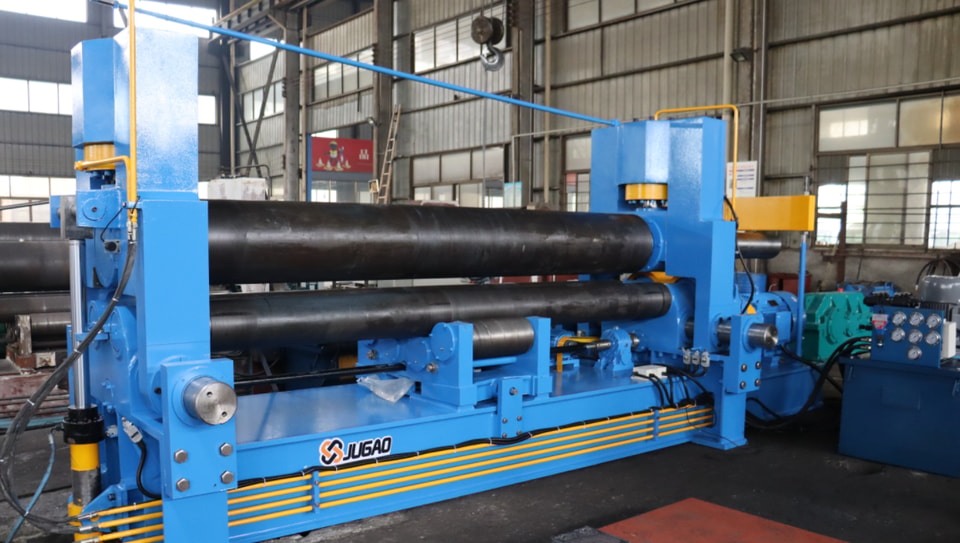

Key Considerations When Purchasing an Upper Roller Universal Plate Rolling Machine

When purchasing an upper roller universal plate rolling machine, the following are some key points to consider:

I. Processing Capacity Related Points

Maximum Plate Thickness and Width

These are fundamental parameters. The maximum plate thickness determines the maximum thickness of the sheet metal the rolling machine can process. For example, if your production needs frequently involve rolling 10mm thick steel plates, you will need to choose a rolling machine with a maximum plate thickness of 10mm or greater. The maximum plate width is also crucial, as it limits the maximum width of the sheet metal that can be processed. When purchasing, you should determine the appropriate rolling machine based on the actual range of sheet metal dimensions you will be processing.

Furthermore, it's important to note that the performance of a rolling machine may be affected when approaching the maximum plate thickness and width; for example, rolling accuracy may decrease. Therefore, it's best to allow for some margin when selecting a machine to accommodate potential future processing changes.

Minimum Plate Rolling Radius

The minimum plate rolling radius reflects the tightest rolling pressure the rolling machine can achieve. Different product designs may have strict requirements regarding the minimum plate rolling radius. For example, when manufacturing cylindrical containers, a smaller rolling radius is needed to achieve a compact product design. Understanding whether the minimum rolling radius of the plate rolling machine meets the product's design requirements is crucial. Furthermore, a smaller minimum rolling radius usually also means better performance and higher precision from the plate rolling machine.

II. Key Points Related to Precision

Rolling Accuracy

This includes accuracy indicators such as the straightness and roundness of the sheet metal. A high-precision plate rolling machine ensures that the rolled sheet metal meets stringent product quality standards. For example, in the aerospace field, for some metal sheet components, the requirements for roundness and straightness are extremely high, and the rolling accuracy of the plate rolling machine must meet the corresponding tolerance range.

Many factors affect rolling accuracy, such as the accuracy of the rollers, the machine's structural design, and the control system. When purchasing, you can check the equipment's technical parameter manual or consult the manufacturer regarding specific values ​​and testing methods for rolling accuracy. You can also visit actual equipment operation case studies to evaluate its accuracy.

Positioning Accuracy

The positioning accuracy of the upper roller also has a significant impact on the quality and efficiency of the rolled sheet. Accurate positioning ensures more precise control of the starting position and parameters during each roll. In highly automated plate rolling machines, a variety of complex rolling processes, such as segmented rolling and variable diameter rolling, can be achieved through a precise positioning system. When purchasing, it is important to understand the type of positioning system used (e.g., encoder positioning, laser positioning) and its accuracy level.

III. Key Points of Equipment Structure and Components

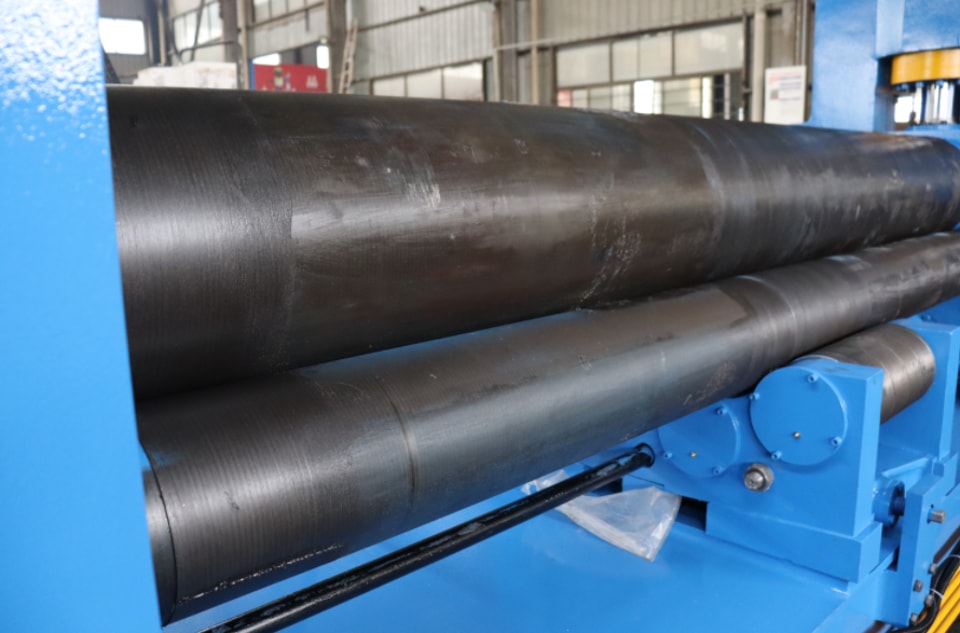

Roller Quality and Material

Upper and lower rollers are core components of a plate rolling machine. The quality of the rollers directly affects the rolling effect and the service life of the equipment. High-quality rollers should have good rigidity and surface hardness. For example, rollers made of alloy steel, after appropriate heat treatment, have high surface hardness, which can prevent the sheet metal from scratching the roller surface during rolling, and can withstand greater pressure without deformation.

Also, pay attention to the diameter and length of the rollers. A larger roller diameter results in a more uniform pressure distribution on the sheet metal during the rolling process, which is beneficial for improving rolling quality. The roller length must match the maximum rolling width to ensure uniform rolling across the entire width of the sheet metal.

Machine Structure Stability

The machine structure of the plate rolling machine must have sufficient stability. During the rolling process, the machine must withstand significant pressure. If the machine structure is unstable, it will lead to a decrease in rolling accuracy and may even damage the equipment. The machine body generally adopts a welded or cast structure. Welded structures can reduce costs while ensuring strength, while cast structures offer more stable overall performance but may be more expensive. When purchasing, the stability of the machine structure should be evaluated based on actual needs and budget, such as checking details like the material thickness and the design of reinforcing ribs.

IV. Control System Key Points

Automation Level

The degree of automation in the control systems of modern plate rolling machines varies considerably. Plate rolling machines with a high degree of automation can achieve functions such as automatic feeding, automatic rolling, automatic measurement, and control of rolling parameters. For example, on large industrial production lines, automated plate rolling machines can be linked with other equipment (such as sheet metal cutting equipment and welding equipment) to automate the entire production process. For users with large production batches and relatively uniform product specifications, highly automated plate rolling machines can significantly improve production efficiency and product quality.

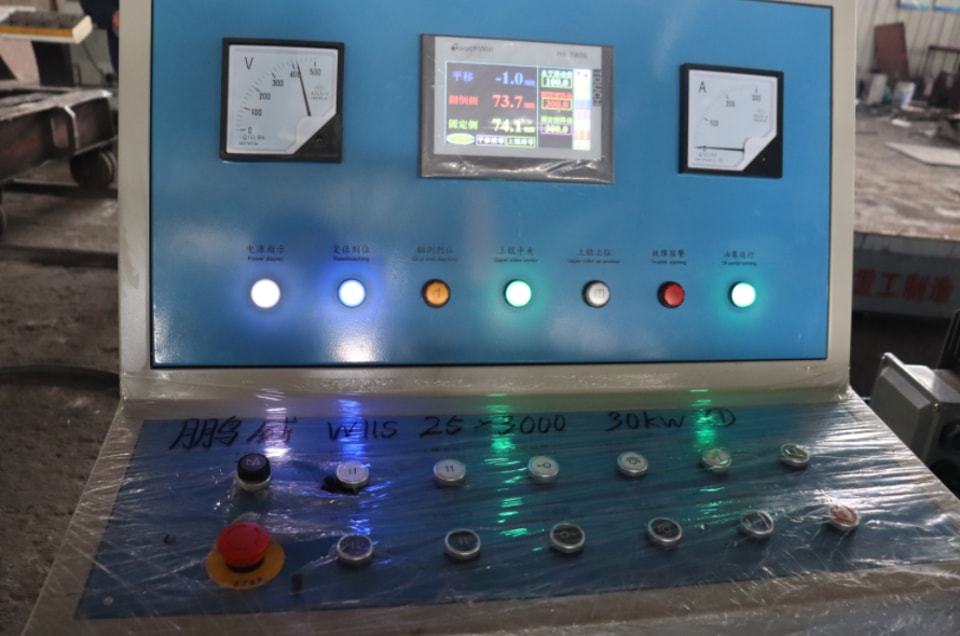

The automated control system also includes a human-machine interface (HMI). A user-friendly HMI allows operators to easily set parameters and diagnose faults. When purchasing, it's advisable to actually operate the equipment's control system to evaluate its ease of use and intuitiveness.

Control Precision

The precision of the control system plays a crucial role in the quality of plate rolling. It accurately controls parameters such as the roller's speed and pressure. For example, when rolling high-precision thin plates, precise control of the upper roller's downward speed and pressure is required to prevent wrinkles or cracks in the sheet metal. When purchasing, it's essential to understand the control algorithm, feedback mechanism, and achievable control precision of the control system.

V. Key Safety Features

Safety Protection Devices

Plate rolling machines are large pieces of machinery, and certain safety risks exist during operation. A complete set of safety protection devices must be provided, such as emergency stop buttons, guardrails, and light curtains. Emergency stop buttons should be distributed in multiple locations on the equipment so that operators can quickly stop operation in an emergency. Guardrails prevent operators from accidentally contacting moving parts while the equipment is running, and light curtains automatically stop the equipment when someone approaches the danger zone, preventing personal injury accidents.

At the same time, the quality and reliability of the safety protection devices should be checked, such as whether the guardrails are strong enough and whether the light curtains respond quickly enough.

Safety Operating Procedures and Training Support

Reputable plate rolling machine manufacturers will provide detailed safety operating manuals and may offer equipment operation training services. When purchasing, inquire with the manufacturer whether they have a comprehensive safety operating training system, including training content, training time, and training methods. Only through rigorous training and familiarity with the equipment's safety operating procedures can operators ensure the safe and efficient operation of the plate rolling machine.
