Introduction to Three Power Source Types of Fully Automatic Pipe Bending Machines

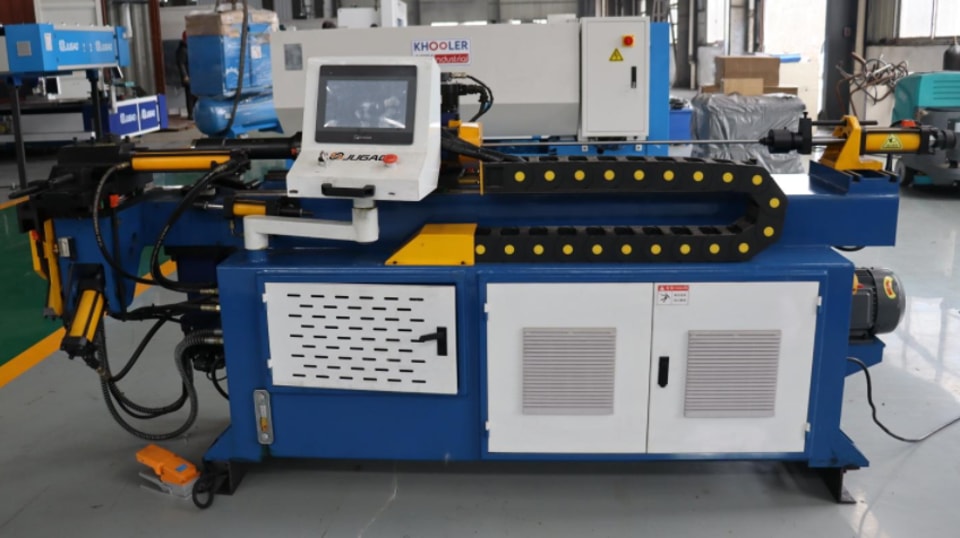

In the development of fully automatic pipe bending machines, the power source has been continuously improved. In the early days of manual pipe bending, the main power source was the labor of one or more operators. The processed products were generally small pipes, resulting in low production efficiency, insufficient precision, and limited pipe shapes. With the development of modern technology and the improvement of industrial levels, high-performance pipe bending machines such as CNC pipe bending machines and three-dimensional hydraulic pipe bending machines have been developed. These high-level pipe bending machines generally have three main drive methods: electric motor drive, hydraulic drive, and electric motor-hydraulic hybrid drive.

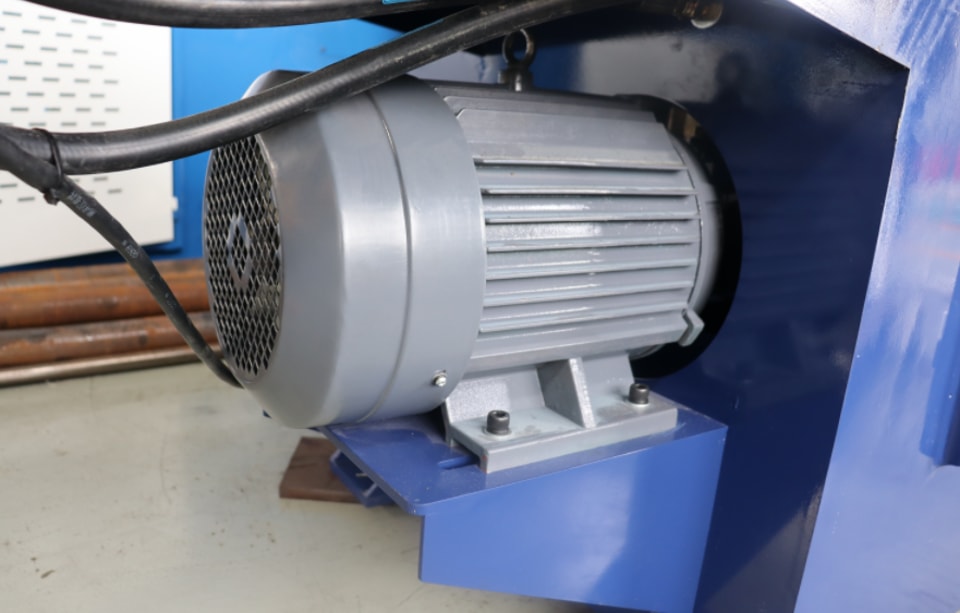

1. Electric Motor Drive

In today's modern industry, most mechanisms and devices use electric motor drives to provide power for the basic operations of the entire device. The electric motor provides the power source, and there are many ways to transmit power. For example, the electric motor can drive gears, racks, cams, connecting rods, etc., allowing for the design of fully automatic pipe bending machines that meet specific requirements.

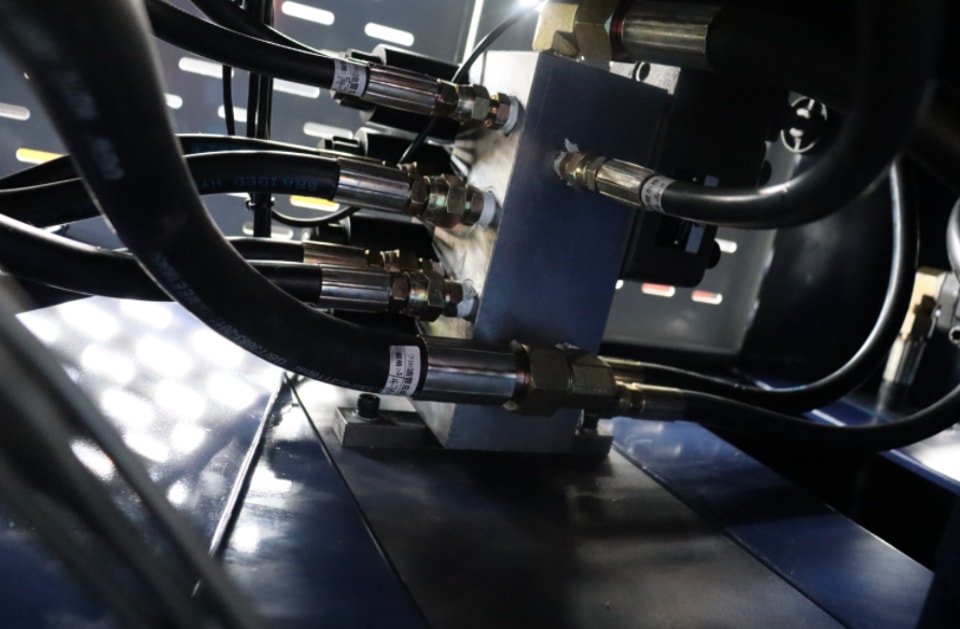

2. Hydraulic Drive

With the continuous development of industrial technology, hydraulic transmission technology is one of the fastest-growing technologies in mechanical equipment, especially in recent years, entering a new stage of development. Hydraulic transmission and control systems, with their advantages of high power transmission, high control precision, fast response speed, and ease of achieving integrated motor-hydraulic control, are widely used in various industries. Hydraulic pipe bending machines, powered by hydraulics, are a new type of pipe bending mechanism. They possess advantages such as reasonable structure, convenient operation, safe use, quick loading and unloading, and multi-functionality.

3. Hybrid Motor-Hydraulic Drive

While hydraulic pipe bending machines offer advantages such as high power transmission, high control precision, and fast response speed, they also have some drawbacks, such as: low production efficiency due to excessive operator movements; high machine wear and tear, shortened service life; and a large number of operators, resulting in higher labor costs and product costs. Therefore, further research proposes using a hybrid motor-hydraulic drive. This allows for the most rational use of the advantages of both motors and hydraulics to reduce production costs, improve production efficiency, and enhance processing precision.
