How to optimize the control settings of a pipe bending machine?

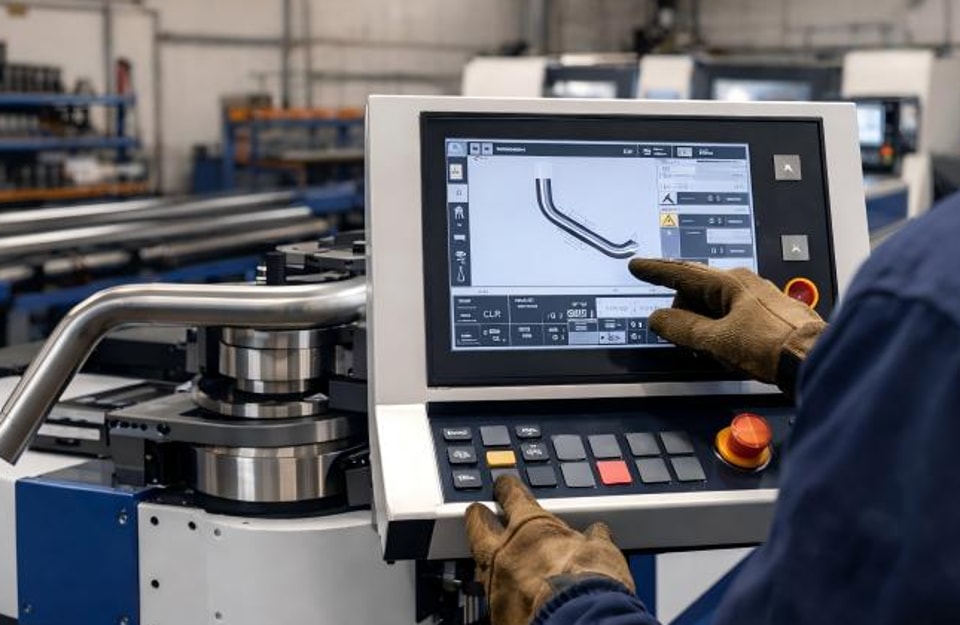

The control settings for a pipe bending machine, simply put, are a set of action commands given to the machine. How it moves, how fast it moves, and where it stops are all determined by these parameters. However, I've seen many factories buy the equipment, set the parameters once, and then never touch them again. As a result, the pipes they bend are inconsistent, and they assume it's a problem with the machine itself.

In reality, control settings are not static; they need to be adjusted based on materials, pipe diameter, wall thickness, and even ambient temperature. Below, I've summarized some key points to keep in mind during the setup process.

First, ensure the basic parameters are correct.

The core material bending parameters are the first thing to confirm. Pipe diameter, wall thickness, bending radius, and material type—these four values ​​directly determine the springback compensation and bending force calculations. If these are entered incorrectly, even the most intelligent control system won't be able to calculate accurate compensation values, and the resulting bending angle will likely be off.

Pay special attention when changing materials. Carbon steel and stainless steel have significantly different springback values, and aluminum and copper have different properties. The same set of parameters applied to different materials can yield completely different results.

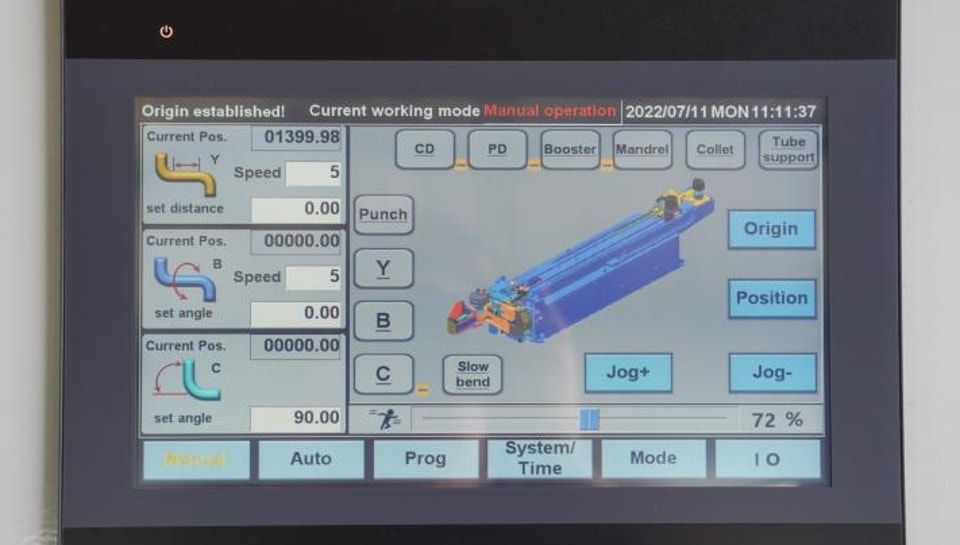

Feed length and rotation control need to be properly calibrated.

The dimensional accuracy of multi-bend pipe fittings largely depends on the accuracy of the feed length and rotation angle. If the encoder feedback is inaccurate, or the servo system's resolution is not fine enough, the error may not be noticeable on the first bend, but will become significant with the cumulative error on the third and fourth bends.

The feed speed and acceleration/deceleration curves also deserve careful adjustment. Too fast, and the pipe will slip; too slow, and efficiency will suffer. Finding a suitable balance will allow the system to operate more smoothly.

The importance of adjusting bending speed is often underestimated.

Too high a speed prevents the material from deforming evenly, potentially causing wrinkles or cross-sectional deformation in the tube. Too low a speed, while ensuring stable quality, results in low production volume. I typically start with a lower speed for trial bending, gradually increasing it until a critical point where quality issues arise, then reducing the speed slightly as a safety margin.

The acceleration curve is equally important. A smooth entry into the bending motion differs significantly from a sudden start; the latter places a greater impact on the die and, in the long run, affects its lifespan.

Angle calibration and springback compensation are unavoidable steps in pipe bending.

Angle calibration must be performed every time the material or pipe diameter is changed. The method involves bending a sample pipe, measuring the actual angle with an angle gauge, and then adjusting the springback compensation value in the control system until the actual angle matches the set angle.

This step cannot be skipped, nor can it be based on guesswork. Different batches of materials may have different springback values; actual measurement after each material change is far more reliable than guesswork.

Multi-axis synchronization is crucial for the quality of complex pipe bends.

For complex pipe fittings requiring multiple bends and rotations, the coordination between the various axes is critical. If the bending axis is moving before the rotating axis is in position, or if the acceleration/deceleration curves of the feeding axis do not match those of the other axes, the bent pipe may suffer from surface scratches or dimensional deviations.

Checking the consistency of response times for each axis and confirming the coordination of control signals are essential details that directly impact the final product quality.

Common Problems and Troubleshooting Approaches

**Inconsistent Angles:** Check the accuracy of the springback compensation value and material parameters. Recalibrate the angle if necessary.

**Intermittent Alarms:** This may be related to excessively high acceleration settings or improper parameter limits. Try reducing the motion speed appropriately.

**Poor Repeatability:** Check the encoder feedback and mechanical backlash. Feed length drift or rotational misalignment can cause this issue.

Several habits to keep settings stable:

Every time you change materials or molds, review the key parameters. Don't wait until problems arise to remember this.

Back up verified parameters. In case of system resets or software updates, you can restore them directly.

Investing in operator training is worthwhile. If operators understand the meaning of parameters and the logic behind their adjustments, they can handle minor issues on-site without waiting for maintenance personnel.

Ultimately, setting up a pipe bending machine's control settings isn't a one-time process; it's a dynamic process requiring continuous fine-tuning based on actual conditions. Correctly adjusting the parameters results in pipes with accurate angles, stable dimensions, and good surface finishes, naturally reducing the scrap rate. If you've ever encountered quality fluctuations due to control setting issues in production, feel free to share how you troubleshooted and resolved them.
