Features and Application Advantages of Three-Roll and Four-Roll Plate Bending Machines

The features and application advantages of three-roll and four-roll plate bending machines are as follows:

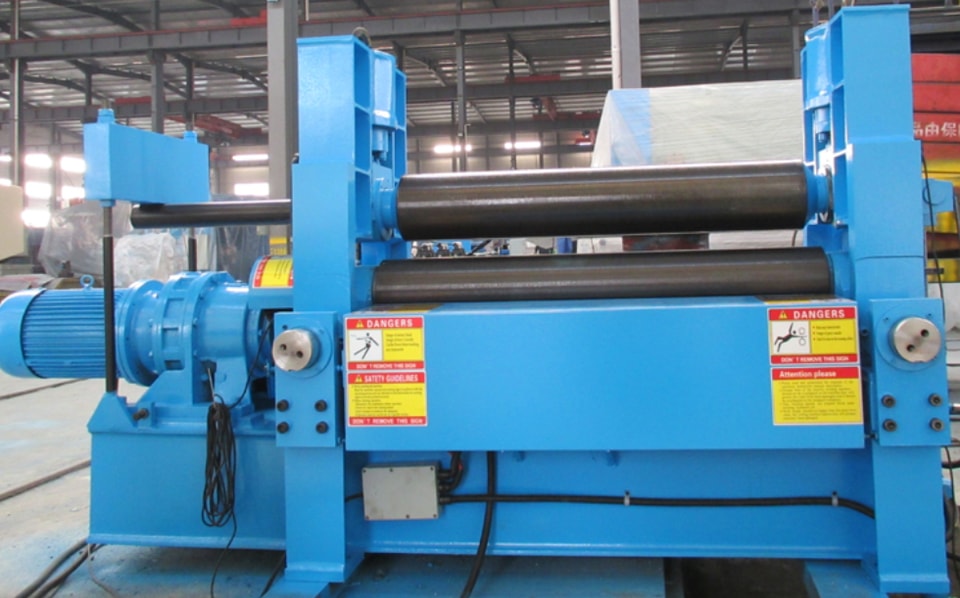

Three-Roll Plate Bending Machine

Features:

Relatively Simple Structure: Typically composed of one upper roller and two lower rollers, the overall structure is compact, occupying relatively little space. Its simple appearance makes it convenient for use in small processing areas or places with high space requirements.

Easy Operation: The operation is relatively easy to master, requiring relatively low skill levels from operators. With some training, operators can become proficient. For example, in small machine shops, workers can quickly learn to operate a three-roll plate bending machine.

Lower Price: Under the same specifications and performance requirements, the manufacturing cost of a three-roll plate bending machine is relatively low, resulting in a relatively inexpensive market price. This makes it a more economical choice for businesses or individuals with limited budgets.

Possible Roundness Correction Capability: It can bend plates multiple times, gradually shaping them into circles or arcs. This is effective for processing workpieces where roundness requirements are not particularly high.

Application Advantages:

Suitable for small workpiece processing: Due to its structure and working method, it is particularly suitable for processing small metal sheets, such as small pipes and tanks. It is widely used in the manufacturing of small pressure vessels and the processing of ventilation ducts. For example, in a small ventilation duct processing plant, a three-roll plate bending machine can quickly roll metal sheets into the required circular pipes.

Highly efficient for simple shape processing: For workpieces that only require rolling simple circles or arcs, the three-roll plate bending machine has high processing efficiency. Its working process is relatively straightforward, enabling rapid bending of the sheet metal, saving processing time.

Low maintenance costs: The simple structure means that maintenance and upkeep are relatively easy. Fewer parts are available and easy to replace, resulting in lower maintenance costs. Routine maintenance mainly involves lubricating the rollers and adjusting the gaps, requiring no complex maintenance techniques or high maintenance costs.

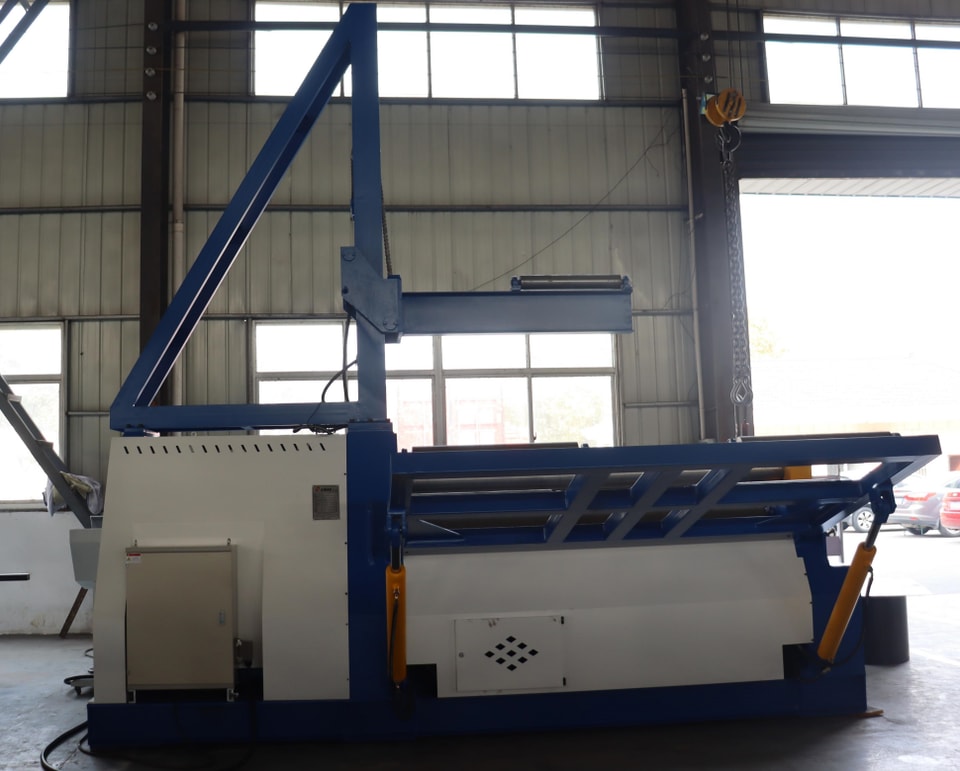

Four-roll plate bending machine

Features:

Complex structure but powerful functionality: Composed of one upper roller, two lower rollers, and two side rollers, its relatively complex structure allows for more functions and more complex processing operations.

High processing precision: The coordinated action of four rollers allows for better control over the bending degree and shape accuracy of the sheet metal. The straight edges of the pre-bent and the roundness of the rounded edges are superior to those of three-roll plate bending machines. For example, in the manufacture of large tanks with high requirements for roundness and straightness, four-roll plate bending machines can meet the high-precision processing requirements.

High degree of automation: Typically equipped with advanced control systems, such as CNC systems, it can achieve automated processing operations, improving processing efficiency and precision, and reducing errors from manual operation.

Pre-bending and leveling functions: It can complete the end pre-bending and rolling operations of sheet metal on the same machine, and can also perform rough leveling of the sheet metal, reducing processing steps and improving production efficiency.

Application advantages:

Suitable for large workpieces and workpieces with high precision requirements**: In fields such as large pressure vessels, shipbuilding, and large pipelines, where the dimensional and precision requirements of workpieces are high, four-roll plate bending machines can meet these requirements. For example, in shipbuilding, the bending components of large hulls require high-precision plate bending machines, and four-roll plate bending machines can ensure the quality and precision of hull components.

Capable of processing complex shapes: For workpieces with complex shapes, such as cones and ellipses, the four-roll plate bending machine can achieve processing by adjusting the position and movement of the rollers, offering greater adaptability and processing capabilities.

Improved production efficiency: The high degree of automation and one-step forming process significantly improves production efficiency, making it suitable for mass production. In some large steel structure manufacturing enterprises, the high efficiency of the four-roll plate bending machine can meet the needs of large-scale production.

Convenient and safe operation: The advanced control system makes operation more convenient, reducing the labor intensity of manual operation. At the same time, the equipment's safety protection devices are more comprehensive, improving operational safety.
