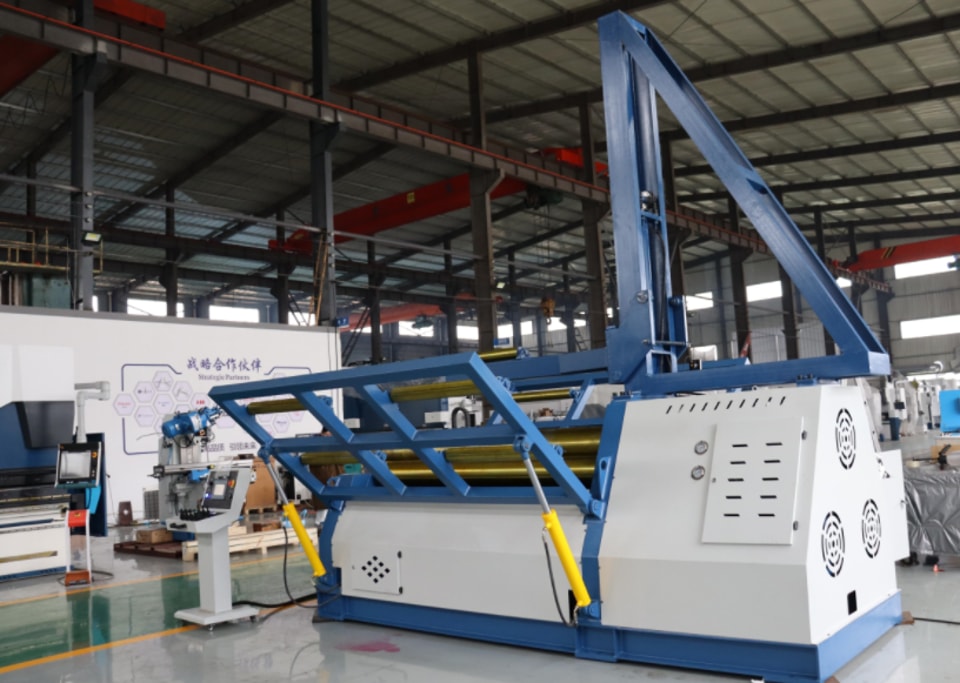

Common Faults and Solutions for Fully Automatic Four-Roll Plate Rolling Machines

Faults are inevitable during the use of fully automatic four-roll plate rolling machines. Understanding common faults and their solutions can effectively improve equipment efficiency and reduce maintenance costs. Below are some common faults and their possible solutions.

I. Equipment Fails to Start

Fault Analysis:

Equipment failure to start can be caused by various reasons, including power supply problems, control system malfunctions, or mechanical jamming.

Solutions:

1. Check the power connection to ensure a normal power supply.

2. Check the indicator lights on the control panel to confirm whether error messages are displayed.

3. Check the mechanical parts to ensure there are no foreign objects obstructing movement.

II. Uneven Plate Rolling

Fault Analysis: Uneven plate rolling is usually caused by uneven pressure between rollers, poor roller alignment, or improper material overlap.

Solutions:

1. Adjust the roller spacing to ensure uniform pressure between rollers.

2. Check the roller alignment and correct it if necessary.

3. Ensure the width and thickness of the rolled material are consistent to avoid uneven rolling.

III. Equipment Overheating

Fault Analysis:

 Equipment overheating may be caused by insufficient lubrication, overload, or electrical component failure.

Solutions:

1. Regularly check the lubrication system and replenish or replace the lubricating oil.

2. Install appropriate protective devices to avoid overload operation.

3. Check whether electrical components are working properly; replace any damaged components promptly.

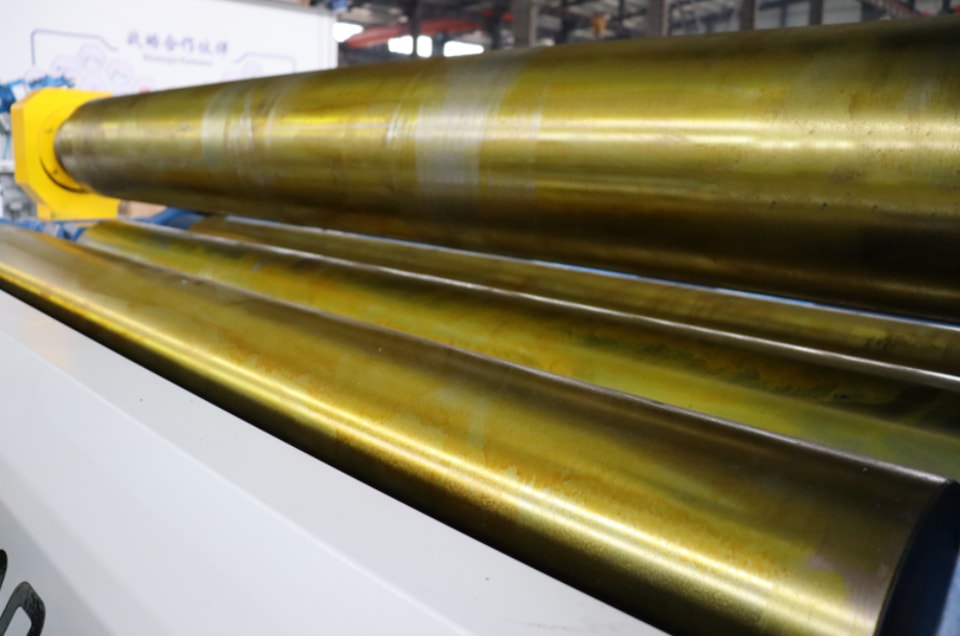

IV. Severe Roller Wear

Fault Analysis:

Severe roller wear may be due to improper use or materials with hardness exceeding the equipment's design standards.

Solutions:

1. Regularly check the roller wear and replace them if necessary.

2. Select suitable materials appropriately, avoiding the use of hard materials beyond the equipment's load-bearing capacity.

V. Abnormal Noise from Transmission Components

Fault Analysis:

Abnormal noise from transmission components may indicate loose parts, wear, or poor lubrication.

Solutions:

1. Check all fasteners to ensure they are not loose.

2. Lubricate all moving parts to maintain good lubrication.

3. Replace any damaged parts promptly.

VI. Control System Failure

Fault Analysis:

A failure in the control system may lead to operational malfunctions or incorrect commands, affecting production efficiency.

Solutions:

1. Check the power supply and wiring connections of the control system to ensure there are no short circuits or open circuits.

2. Check the control interface to confirm that the program settings are correct.

3. If necessary, restart the system or restore factory settings and reset the parameters.

VII. Hydraulic System Failure

Fault Analysis:

Problems with the hydraulic system may cause slow equipment operation or malfunction.

Solutions:

1. Check the hydraulic oil level and quality, and replace it if necessary.

2. Check the sealing of each hydraulic component to ensure there are no leaks.

3. Regularly maintain the hydraulic system to ensure its normal operation.

VIII. Coil Material Surface Damage

Fault Analysis:

Scratches or dents on the surface of the rolled material are usually related to the working condition or maintenance of the rolling machine.

Solutions:

1. Regularly check the surface finish of the rollers to ensure there is no damage. 2. Use appropriate rolling force to avoid excessive pressure on the material.

3. Ensure a clean rolling environment to reduce scratches from debris.

Fully automatic four-roll plate rolling machines are prone to malfunctions during operation. The common problems and solutions mentioned above can provide a reference for equipment maintenance. Regular inspection and proper operation are key to ensuring efficient equipment operation.
