Common operating system of JUGAO bending machine——Torsion Axis Bending Machine

Hydraulic sheet metal bending machine is a general-purpose processing equipment, which is an indispensable equipment in the field of sheet metal processing in normal industrial production. After the customer chooses the machine tool with the appropriate tonnage according to their actual processing scope, it is also particularly important to choose the appropriate operating system.

During the development of the bending machine, the initial machine tool positioned the primary electromechanical stop. As the technology advances, it is gradually replaced by the digital display operating system, and the Eston E10 system has the highest evaluation for the digital display system. At this stage, it has been replaced by Eston's E21 and E21S. At the same time, other domestic systems are also gradually launched, representing NC89, etc., but E21 and E21S maintain a market share of more than 50%. In addition, with the emergence oftorsion-axis CNC systems, torsion-axis CNC models have also been recognized by the market. However, due to the high prices of systems such as DELEM's DA41 and ESTUN's E300, the market utilization rate is low. However, with the introduction of other domestic CNC systems in recent years, the price of system options has dropped to freezing point. Torsion axis CNC models are also recognized by most users. At the same time, JUGAO has also launched the JUGAO-T8 bending machine operating system in conjunction with electronic control developers.

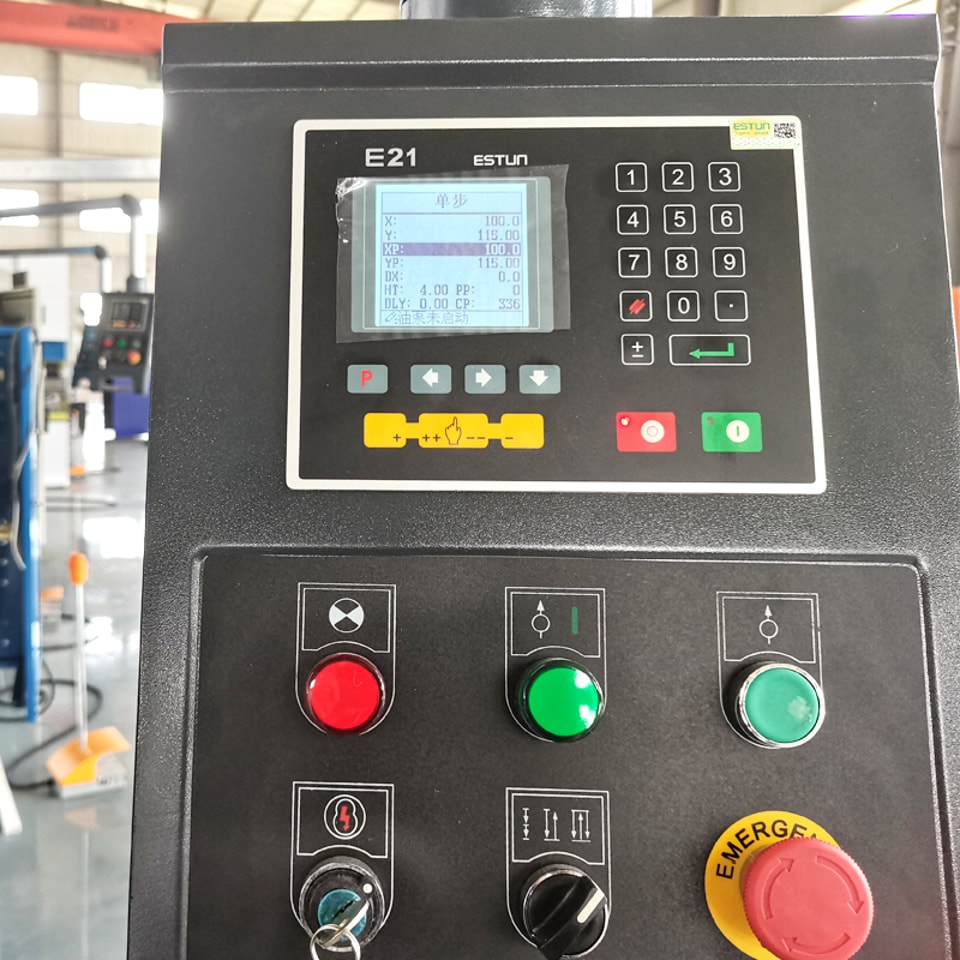

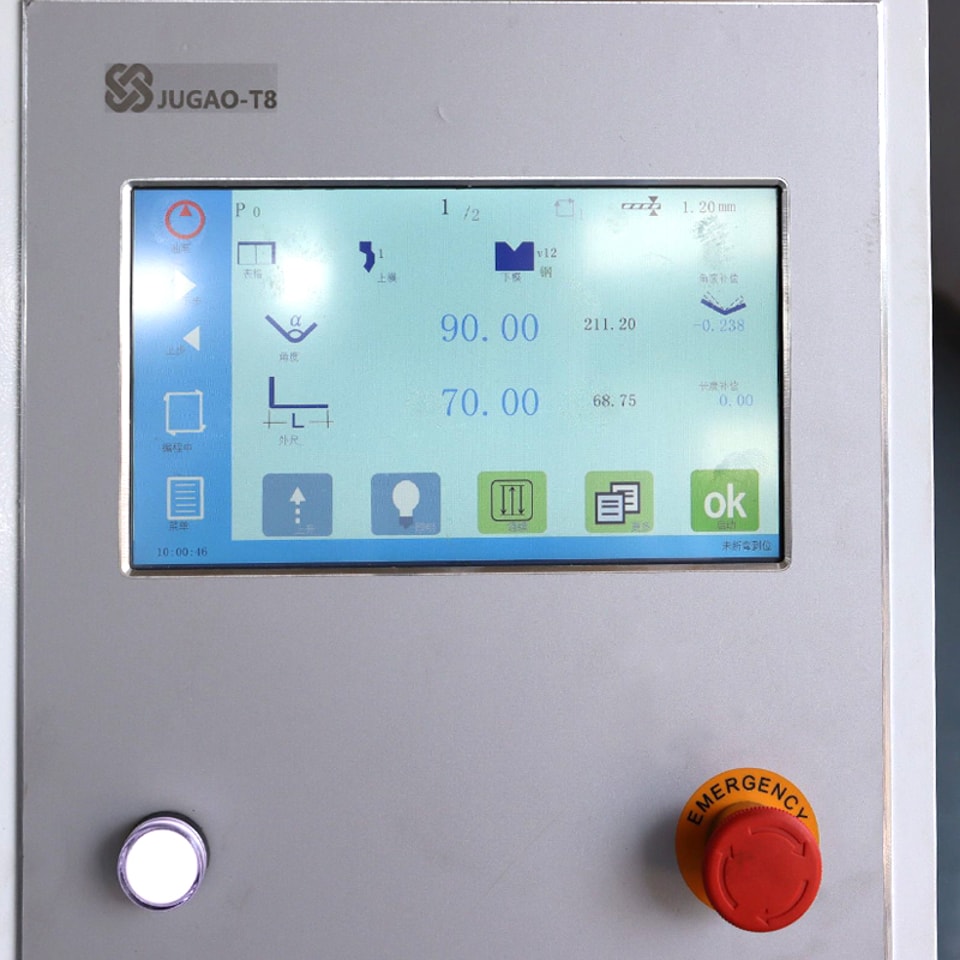

The advantages and disadvantages of each system are described in detail below. The torsion axis bending machine system is currently divided into two major systems. 1. The general-purpose system is represented by E21. It is very economical. But for operation you need to understand how it works. The Y-axis value represents the position where the mold descends to the lowest point. Change the bend angle by adjusting the Y value. The requirements for operators are relatively high. 2. Take JUGAO-T8 as an example for the numerical control system of torsion axis bending machine. The JUGAOT8 system launched by our company is an upgraded version based on TP10S. The specific upgrade content is 15-inch large touch screen, Chinese, English and Spanish interfaces, angle programming, etc. At the same time, the smoothness and stability of the system operation have been significantly improved. The system has relatively low requirements for operators. Automatic bending can be performed by simply inputting the information of the processed product and the angle of the bending machine. At the same time, it has the function of angle correction, which can be used when processing errors are found. The system is also upgraded to a servo motor drive, and the adjustment efficiency is increased by more than 4 times. In addition, the JUGAOT8 system also has good advantages compared with other systems such as E300 and DA41S. For example: the cost of use is half the price of an additional system. Screen: 15-inch touch screen, simple and clear operation interface, etc.

JUGAO company is still continuing the systematic research to make the bending machine operating system closer to the actual operation needs. The JUGAOT8 system will be further upgraded in 2024.
